AST RESEARCH, INC.

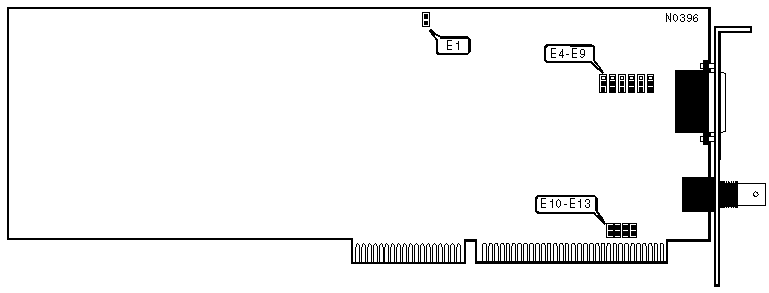

AST ETHERNET (202171-001)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Not available |
|
SLEEP MODE |
||
|
Setting |
E1 |
|
|
» |
Disabled |
Closed |
|
|
Enabled |
Open |
|
Note: When sleep mode is enabled the card is disabled. The card cannot be accessed by the computer or the network. This option is provided to simplify trouble shooting system conflicts. |
||
|
CABLE TYPE |
||
|
Type |
E4 - E9 |
|
|
» |
RG-58A/U 50ohm coaxial |
Pins 2 & 3 closed |
|
|
AUI transceiver via DB-15 port |
Pins 1 & 2 closed |
|
CARD ID |
|||||
|
Setting |
E10 |
E11 |
E12 |
E13 |
|
|
» |
A |
Closed |
Open |
Open |
Open |
|
|
B |
Open |
Closed |
Open |
Open |
|
|
C |
Open |
Open |
Closed |
Open |
|
|
D |
Open |
Open |
Open |
Closed |
|
Note: Up to four cards can be installed at once into the same system. If more than one card is installed in the |
|||||
|
MISCELLANEOUS NOTES |
|
To completely configure this card, the software that comes with it must be used.. |
