NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

8/16-bit ISA

Topology

Star

Wiring Type

AUI transceiver via DB-15 port

Boot ROM

Available

CARD CONFIGURATION

Mode

I/O Address

IRQ

Cable Type

Boot ROM

JP1

»

Software

Software

Software

Software

Software

Open

NE1000

280h

Disabled

AUI transceiver

Disabled

Closed

Note: The card is normally configured using the included software utility. The second configuration is provided to allow easier troubleshooting if the system will not boot or locks-up.

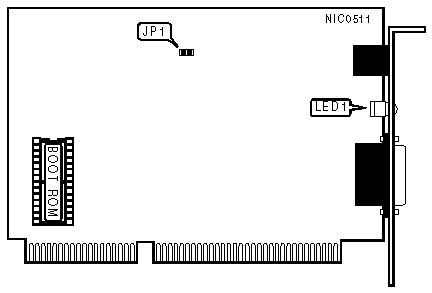

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Twisted pair network connection is good

LED1

Green

Off

Twisted pair network connection is broken
