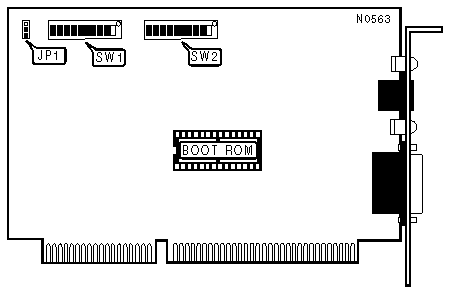

BUSLOGIC, INC.
BT-560T
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Shielded/Unshielded Twisted Pair AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
I/O CHANNEL READY | ||
|
Setting |
JP1 | |
| » |
Disabled |
Pins 2 & 3 Closed |
|
Enable |
Pins 1 & 2 Closed | |
|
Note:In some cases memory may require a lengthened transfer cycle. In these cases, the BT-560A must wait for a Host I/O READY signal (set to Host I/O Channel Ready Signal to Enabled). | ||
|
CARD FUNCTION | ||
|
Setting |
SW1/1 | |
| » |
Enabled |
On |
|
Disabled |
Off | |
|
INTERRUPT REQUEST | ||||
|
IRQ |
SW1/2 |
SW1/3 |
SW1/4 | |
|
2/9 |
Off |
Off |
On | |
|
10 |
On |
Off |
On | |
|
11 |
Off |
On |
On | |
| » |
15 |
On |
On |
On |
|
DMA CHANNEL | |||
|
Channel |
SW1/5 |
SW1/6 | |
|
Disabled |
Off |
Off | |
|
DMA5 |
On |
Off | |
|
DMA6 |
Off |
On | |
| » |
DMA7 |
On |
On |
|
DATA BUS TRANSFER RATE | |||
|
Setting |
SW1/8 |
SW1/9 | |
| » |
5MBps |
On |
On |
|
6.7MBps |
On |
Off | |
|
8MBps |
Off |
On | |
|
10MBps |
Off |
Off | |
|
Note:This setting specifies the rate at which the card transfers data (in Megabytes per second) on the data bus when acting as bus master. | |||
|
MEMORY STROBE-TIMING | ||
|
Setting |
SW1/10 | |
| » |
150ns |
On |
|
100ns |
Off | |
|
Note:This switch selects the amount of time between the PC/AT's memory-write or memory-read command strobes. | ||
|
BOOT ROM ADDRESS | ||||||
|
Address |
Boot ROM |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 | |
|
C0000h |
8K or 16K |
Off |
Off |
Off |
Off | |
|
C2000h |
8K |
On |
Off |
Off |
Off | |
|
C4000h |
8K or 16K |
Off |
On |
Off |
Off | |
|
C6000h |
8K |
On |
On |
Off |
Off | |
|
C8000h |
8K or 16K |
Off |
Off |
On |
Off | |
|
CA000h |
8K |
On |
Off |
On |
Off | |
|
CC000h |
8K or 16K |
Off |
On |
On |
Off | |
|
CD000h |
8K |
On |
On |
On |
Off | |
|
D0000h |
8K or 16K |
Off |
Off |
Off |
On | |
|
D2000h |
8K |
On |
Off |
Off |
On | |
|
D4000h |
8K or 16K |
Off |
On |
Off |
On | |
|
D6000h |
8K |
On |
On |
Off |
On | |
|
D8000h |
8K or 16K |
Off |
Off |
On |
On | |
|
DA000h |
8K |
On |
Off |
On |
On | |
|
DC000h |
8K or 16K |
Off |
On |
On |
On | |
| » |
DE000h |
8K |
On |
On |
On |
On |
|
BOOT ROM SIZE | |||
|
Size |
SW2/5 |
SW2/6 | |
| » |
Disabled |
On |
On |
|
8K size |
Off |
On | |
|
16K size |
On |
Off | |
|
CABLE TYPE | ||
|
Type |
SW2/7 | |
| » |
Shielded/Unshielded Twisted Pair |
On |
|
AUI transceiver via DB-15 port |
Off | |
|
I/O BASE ADDRESS | ||||
|
Address |
SW2/8 |
SW2/9 |
SW2/10 | |
|
100h |
Off |
Off |
Off | |
|
120h |
On |
Off |
Off | |
|
140h |
Off |
On |
Off | |
|
160h |
On |
On |
Off | |
|
300h |
Off |
Off |
On | |
|
320h |
On |
Off |
On | |
| » |
340h |
On |
On |
On |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
Off |
Twisted pair polarity is correctly configured |
|
LED1 |
Off |
Twisted pair polarity is incorrectly configured |
|
LED2 |
On |
Link is correctly configured /Link integrity test is disabled |
|
LED2 |
Off |
Link is incorrectly configured /Twisted pair connection is not in use |
|
LED3 |
On |
Data is being transmitted |
|
LED3 |
Off |
Data is not being transmitted |
|
LED4 |
On |
Data is being received |
|
LED4 |
Off |
Data is not being received |
