NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	Unshielded twisted pair
Boot ROM	Available

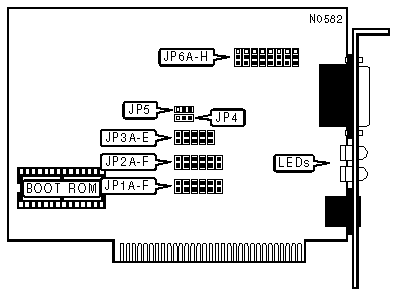

INTERRUPT SETTINGS
IRQ	JP1A	JP1B	JP1C	JP1D
2	Closed	Open	Open	Open
3	Open	Closed	Open	Open
4	Open	Open	Closed	Open
5	Open	Open	Open	Closed

DMA CHANNEL
Channel	JP1E	JP1F	JP2E	JP2F
DMA1	Closed	Open	Closed	Open
DMA3	Open	Closed	Open	Closed

BASE I/O ADDRESS
Address		JP2A	JP2B	JP2C	JP2D
»	300h	Open	Open	Open	Closed
	320h	Open	Open	Closed	Open
	340h	Open	Closed	Open	Open
	360h	Closed	Open	Open	Open

BOOT ROM ADDRESS
Address		JP3A	JP3B	JP3C	JP3D	JP3E
»	C8000h	Closed	Closed	Open	Closed	Closed
	CA000h	Open	Closed	Open	Closed	Closed
	CC000h	Closed	Open	Open	Closed	Closed
	CE000h	Open	Open	Open	Closed	Closed
	D0000h	Closed	Closed	Closed	Open	Closed
	D2000h	Closed	Closed	Closed	Open	Closed
	D4000h	Closed	Open	Closed	Open	Closed
	D6000h	Open	Open	Closed	Open	Closed
	D8000h	Closed	Closed	Open	Open	Closed
	DA000h	Open	Closed	Open	Open	Closed
	DC000h	Closed	Open	Open	Open	Closed
	DE000h	Open	Open	Open	Open	Closed

SEGMENT LENGTH
Length		JP4
»	185 meters	Pins 2 & 3 closed
	300 meters	Pins 1 & 2 closed

CABLE TYPE
Type		JP6A-H
»	Unshielded twisted pair	Pins 1 & 2 closed
	DIX transceiver via DB-15 port	Pins 2 & 3 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Red	Off	Power Off/card or link failure
LED1	Red	Blinking	Data is being transmitted
LED1	Red	On	Data is not being transmitted
LED2	Green	Off	Power Off/card or link failure
LED2	Green	Blinking	Data is being received
LED2	Green	On	Data is not being received/link integrity established
LED3	Yellow	Off	Normal operation
LED3	Yellow	On	Collision detected on network
LED4	Orange	Off	Normal operation
LED4	Orange	On	Card is transmitting for an extended time (jabber)
Note:LED1 and LED2 only function when installed on a 10BaseT network. LED2 is also only functional when link integrity is enabled.
