ADDTRON TECHNOLOGY COMPANY, LTD.
AR-200
|
NIC Type |
Token Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
AUI transceiver via DB-15 Shielded/Unshielded twisted pair |
|
Boot ROM |
In firmware |
|

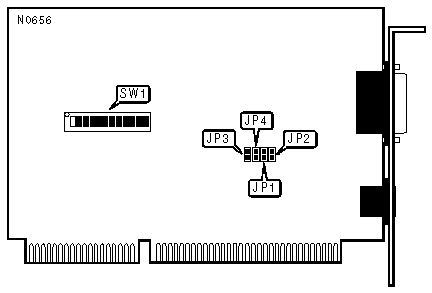

CABLE TYPE | |
|
Type |
JP1 - JP4 |
|
AUI transceiver via DB-15 |
Open |
|
Unshielded twisted pair |
Closed |
|
MULTIPLE CARD CONFIGURATION | ||
|
AR-200 |
SW1/9 | |
| » |
Primary |
On |
|
Alternate |
Off | |
|
Note:If the AR-200 is the only card installed, use the "Primary setting". | ||
|
INTERRUPT REQUEST | |||
|
IRQ |
SW1/7 |
SW1/8 | |
| » |
2 |
Off |
Off |
|
3 |
Off |
On | |
|
7 |
On |
On | |
|
NETWORK SPEED | ||
|
Speed |
SW1/12 | |
| » |
16Mbps |
On |
|
4Mbps |
Off | |
|
Note:All cards on a segment must have this option set the same. | ||
|
ROM ADDRESS | ||||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
A0000h |
Off |
On |
Off |
Off |
Off |
Off |
|
A4000h |
Off |
On |
Off |
Off |
On |
Off |
|
A8000h |
Off |
On |
Off |
On |
Off |
Off |
|
AC000h |
Off |
On |
Off |
On |
On |
Off |
|
B0000h |
Off |
On |
On |
Off |
Off |
Off |
|
B4000h |
Off |
On |
On |
Off |
On |
Off |
|
B8000h |
Off |
On |
On |
On |
Off |
Off |
|
BC000h |
Off |
On |
On |
On |
On |
Off |
|
C0000h |
On |
Off |
Off |
Off |
Off |
Off |
|
C4000h |
On |
Off |
Off |
Off |
On |
Off |
|
C8000h |
On |
Off |
Off |
On |
Off |
Off |
|
CC000h |
On |
Off |
Off |
On |
On |
Off |
|
D0000h |
On |
Off |
On |
Off |
Off |
Off |
|
D4000h |
On |
Off |
On |
Off |
On |
Off |
|
D8000h |
On |
Off |
On |
On |
Off |
Off |
|
DC000h |
On |
Off |
On |
On |
On |
Off |
|
E0000h |
On |
On |
Off |
Off |
Off |
Off |
|
E4000h |
On |
On |
Off |
Off |
On |
Off |
|
E8000h |
On |
On |
Off |
On |
Off |
Off |
|
EC000h |
On |
On |
Off |
On |
On |
Off |
|
F0000h |
On |
On |
On |
Off |
Off |
Off |
|
SHARED RAM CONFIGURATION | |||
|
Size |
SW1/10 |
SW1/11 | |
| » |
16KB |
On |
Off |
|
8KB |
Off |
Off | |
|
32KB |
Off |
On | |
|
64KB |
On |
On | |
|
Note:This setting configures how much system memory the card will use. | |||
