ACCTON TECHNOLOGY CORPORATION
ETHERFAST-TX PCI (EN1207)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10/100Mbps |
|
Data Bus |
PCI |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair RG-58A/U 50ohm coaxial |
|
Boot ROM |
Not available |
|

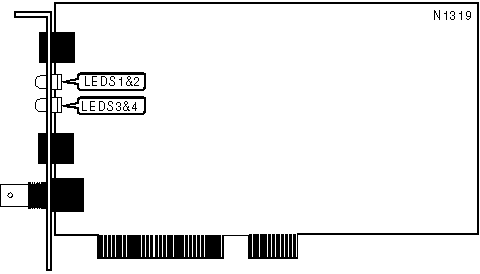

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
10Base-T network connection is good (100Mbps) |
|
LED1 |
Green |
Off |
10Base-T network connection is broken (100Mbps) |
|
LED2 |
Green |
On |
10Base-T network connection is good |
|
LED2 |
Green |
Off |
10Base-T network connection is broken |
|
LED3 |
Green |
Blinking |
Data is being received |
|
LED3 |
Green |
Off |
Data is not being received |
|
LED4 |
Yellow |
On |
Network connection is good (10Mbps) |
|
LED4 |
Yellow |
Off |
Network connection is broken (10Mbps) |
