NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8/16-bit ISA
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Available

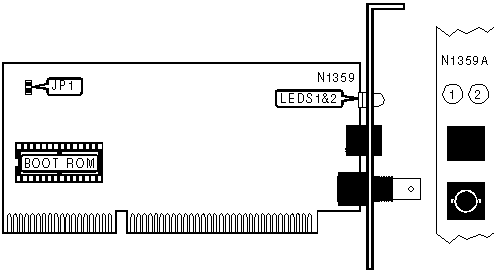

PLUG AND PLAY MODE CONFIGURATION
Mode	JP1
Disabled	Open
Enabled	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	10Base-T network connection is good
LED1	Yellow	Off	10Base-T network connection is broken
LED2	Green	Blinking	Data is being transmitted/received
LED2	Green	Off	Data is not being transmitted/received
