Card Type	Ethernet Transceiver
Maximum Network Rate	10Mbps
Data Bus	AAUI
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial

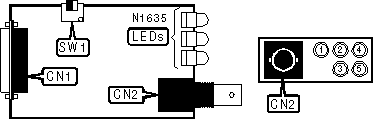

CONNECTIONS
Function	Label	Function	Label
Macintosh AAUI connector	CN1	RG-58A/U 50ohm coaxial	CN2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Transceiver is not internally terminated	SW1/1	On
	Transceiver is internally terminated	SW1/1	Off
»	Heartbeat function disabled	SW1/2	On
	Heartbeat function enabled	SW1/2	Off

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Transceiver is receiving power
LED1	Green	Off	Transceiver is not receiving power
LED2	Green	On	Transceiver is receiving from network
LED2	Green	Off	Transceiver is not receiving from network
LED3	Green	On	Transceiver is transmitting to network
LED3	Green	Off	Transceiver is not transmitting to network
LED4	Yellow	On	Network jabber detected
LED4	Yellow	Off	Network jabber not detected
LED5	Yellow	On	Network collision detected
LED5	Yellow	Off	Network collision not detected
