Card Type	Ethernet
Data Bus	8/16-bit ISA
Maximum Network Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

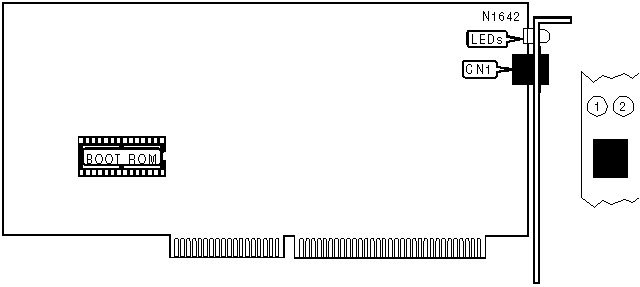

CONNECTIONS
Function	Label
Unshielded twisted pair	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Red	On	Card is transmitting or receiving
LED1	Red	Off	Card is not transmitting or receiving
LED2	Green	On	Network connection is good
LED2	Green	Off	Network connection is broken
