NIC Type	Ethernet
Network Transfer Rate	10/100Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Not available

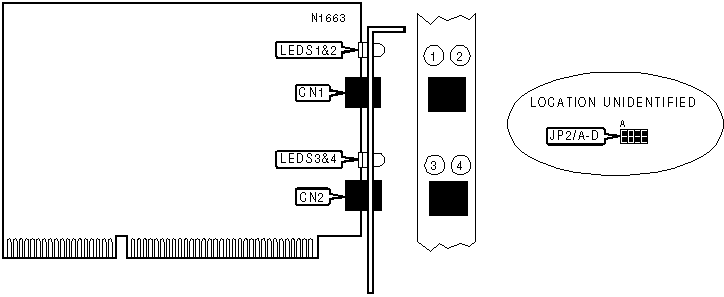

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair (100Base-TX)	CN1	Unshielded twisted pair (10Base-T)	CN2

INTERRUPT SELECTION
IRQ	JP2/A	JP2/B	JP2/C	JP2/D
A	Closed	Open	Open	Open
B	Open	Closed	Open	Open
C	Open	Open	Closed	Open
D	Open	Open	Open	Closed
Note: The location of JP2 is unidentified.

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	Network connection is good on 100Base-TX
LED1	Off	Network connection is broken on 100Base-TX
LED2	Blinking	Data is being transmitted/ received on 100Base-TX
LED2	Off	Data is not being transmitted/ received on 100Base-TX
LED3	On	Network connection is good on 10Base-T
LED3	Off	Network connection is broken on 10Base-T
LED4	Blinking	Data is being transmitted/ received on 10Base-T
LED4	Off	Data is not being transmitted/ received on 10Base-T
