NIC Type	Fiber Channel
Processor	Intel i960
Processor Speed	33MHz
Chipset	Ancor Communications VHSCI
Maximum Onboard Memory	4.5MB SRAM/128KB Flash ROM
Network Transfer Rate	265.6125Mbps
Data Bus	MCA
Topology	Star/Peer-Peer
Wire Type	Fiber optic cable
Boot ROM	Not available

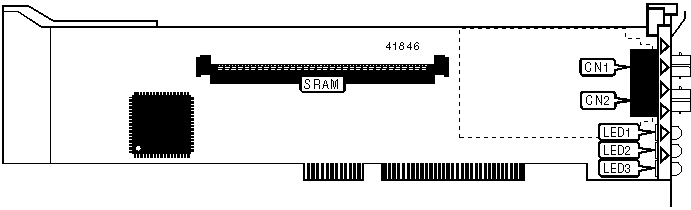

CONNECTIONS
Function	Label	Function	Label
Transmit fiber optic SC connector	CN1	Receive fiber optic SC connector	CN2

SRAM CONFIGURATION

The first 512KB of SRAM, used for processor memory, is located on the board. Its exact location is unidentified. The SRAM SIMM, used as a data buffer, may be 256KB, 1MB, or 4MB. The type and configuration of this SIMM is also unidentified.

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	Blinking	Normal operation
LED1	Unidentified	1 blinks	EPROM failed checksum test
LED1	Unidentified	2 blinks	Processor memory failed self-test
LED1	Unidentified	3 blinks	Buffer memory failed self-test
LED1	Unidentified	4 blinks	FPGA failed self-test
LED1	Unidentified	5 blinks	Flash ROM failed checksum test
LED1	Unidentified	6 blinks	Flash ROM ID failed self-test
LED1	Unidentified	7 blinks	OLC loopback test failed
LED1	Unidentified	8 blinks	Chipset register failed self-test
LED1	Unidentified	9 blinks	Timer failed self-test
LED1	Unidentified	Off	Power is off or processor is not functioning
LED2	Unidentified	On	Card is transmitting data
LED2	Unidentified	Off	Card is not transmitting data
LED3	Unidentified	On	Card is receiving data
LED3	Unidentified	Off	Card is not receiving data
