Card Type	Single Port Transceiver
NIC Type	Ethernet
Network Transfer Rate	10Mbps/CSMA/CD
Topology	Linear Bus
Wiring Type	AUI transceiver via DB-15 port
Data Bus	None

CONNECTION’S
Function	Label
AUI transceiver via DB-15 port	CN1

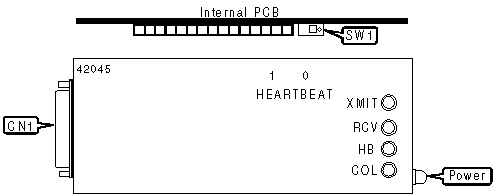

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	SQE/Heartbeat switch disabled	SW1	0
	SQE/Heartbeat switch enabled	SW1	1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
Power	Amber	On	Heartbeat signal is enabled
Power	Green	On	Heartbeat signal is disabled
XMIT	Unidentified	On	Data is being transmitted
XMIT	Unidentified	Off	Data is not being transmitted
RCV	Unidentified	On	Data is being received
RCV	Unidentified	Off	Data is not being received
HB	Unidentified	On	SQE test signal is present
HB	Unidentified	Off	SQE test signal is not present
COL	Unidentified	On	Collision detected on network
COL	Unidentified	Off	No collision detected on network
