Card Type	Network Interface Card
NIC Type	Ethernet
Network Transfer Rate	Unidentified
Topology	Linear Bus
Wiring Type	Shielded twisted pair RG-62A/U 93ohm coaxial
Boot ROM	Not available
Data Bus	8-bit ISA

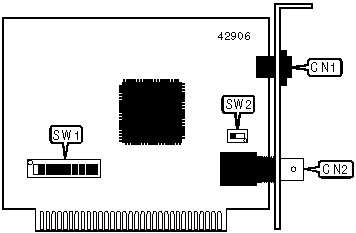

CONNECTIONS
Function	Label	Function	Label
RJ-11 connector	CN1	RG-62A/U 93ohm coaxial	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured – do not alter	SW1/1	Off
»	IRQ2 enabled	SW1/2	Off
	IRQ2 disabled	SW1/2	On
»	IBM interface enabled	SW1/3	Off
	IBM interface disabled	SW1/3	On
»	Communications disabled during power up	SW1/6	Off
	Communications enabled during power up	SW1/6	On
»	Memory enabled during power up at CE000 - CFFFF	SW1/7	Off
	Memory disabled during power up	SW1/7	On
»	IRMA interface enabled	SW1/8	Off
	IRMA interface disabled	SW1/8	On

IRMA I/O ADDRESS SELECTION
Setting		SW1/9	SW1/10
»	220 – 227	Off	Off
	280 – 287	Off	On
	260 – 267	On	Off
	240 - 247	On	On

IBM I/O ADDRESS SELECTION
Setting		SW1/4	SW1/5
»	2D0 – 2DF	Off	Off
	6D0 – 6DF	Off	On
	AD0 – ADF	On	Off
	ED0 - EDF	On	On

CABLE TYPE SELECTION
Type	SW2
RG-62A/U 93ohm coaxial	Off
Shielded twisted pair	On
