Device Type

Transceiver

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Not available

Network Transfer Rate

10Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Data Bus

External

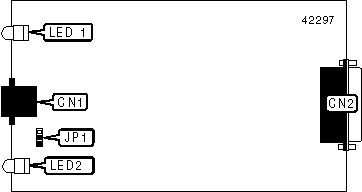

CONNECTIONS

Function

Label

Function

Label

RJ-45 UTP connector

CN1

AUI transceiver via DB-15

CN2

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

SQE test function enabled

JP1

Pins 1 & 2 closed

SQE test function disabled

JP1

Pins 2 & 3 closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Network connection is good

LED1

Green

Off

Network connection is broken

LED2

Green

On

SQE test function enabled

LED2

Green

Off

SQE test function disabled
