Device Type	Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Fiber Optic cable - ST
Data Bus	External

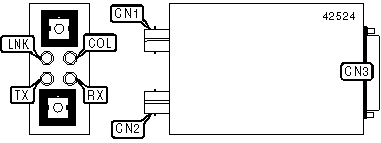

CONNECTIONS
Function	Label	Function	Label
Fiber optic connector (ST)	CN1	AUI transceiver via DB-15	CN3
Fiber optic connector (ST)	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
RX	Unidentified	Blinking	Data is being received
RX	Unidentified	On	Heavy LAN traffic load
RX	Unidentified	Off	Data is not being received
TX	Unidentified	Blinking	Data is being transmitted
TX	Unidentified	On	Large data is being transmitted
TX	Unidentified	Off	Data is not being transmitted
LNK	Unidentified	On	Network connection is good
LNK	Unidentified	Off	Network connection is broken
COL	Unidentified	Blinking	Collision detected on network
COL	Unidentified	Off	Collision not detected on network
COL	Unidentified	On	Possible error occurred
