NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial AUI Transceiver via DB-15 port
Boot ROM	Available

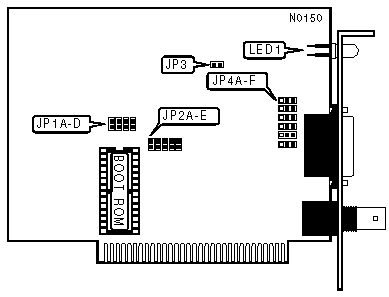

BOOT ROM ADDRESS
Address		JP1A	JP1B
»	C8000-CBFFFh	Open	Open
	CC000-CFFFFh	Closed	Open
	D0000-D3FFFh	Open	Closed
	D4000-D7FFFh	Closed	Closed

I/O BASE ADDRESS
Address		JP1C	JP1D
	300-31Fh	Open	Open
»	320-33Fh	Closed	Open
	340-35Fh	Open	Closed
	360-37Fh	Closed	Closed

INTERRUPT REQUEST
IRQ		JP2A	JP2B	JP2C	JP2D	JP2E
	2	Closed	Open	Open	Open	Open
»	3	Open	Closed	Open	Open	Open
	4	Open	Open	Closed	Open	Open
	5	Open	Open	Open	Closed	Open
	7	Open	Open	Open	Open	Closed

CABLE TYPE
Type		JP3	JP4A - JP4F
»	RG-58A/U 50ohm coaxial	Open	Pins 2 & 3 Closed
	AUI transceiver via DB-15 port	Open	Pins 1 & 2 Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Data is being transmitted or received
LED1	Green	Off	Data is not being transmitted or received
