D-LINK

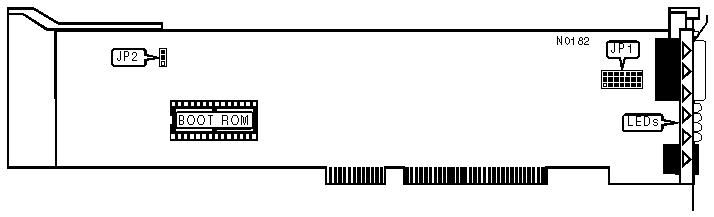

DE-300TP for PS/2
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit MCA |
|
Topology |
Linear Bus |
|
Wiring Type |
Shielded/Unshielded twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
CABLE TYPE | ||
|
Type |
JP1/Jumpers 1-7 | |
| » |
Shielded/Unshielded twisted pair |
Pins 1-2 Closed |
|
AUI transceiver via DB-15 port |
Pins 2-3 Closed | |
|
NIC ID | ||
|
ID Number |
JP2 | |
| » |
OFCCh |
Pins 2-3 Closed |
|
OFCDh |
Pins 1-2 Closed | |
|
Note:The IBM configuration program will automatically know which configuration file to use. If two cards are
| ||
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
1 |
On |
Power is on |
|
1 |
Blinking |
Data is being transmitted |
|
2 |
On |
Network connection is good |
|
2 |
Blinking |
Data is being received |
|
3 |
On |
Collision detected on the network |
|
3 |
Off |
No collisions detected on the network |
|
4 |
Off |
Normal operation |
|
4 |
On |
Transmission interrupted due to abnormally long data stream output |
