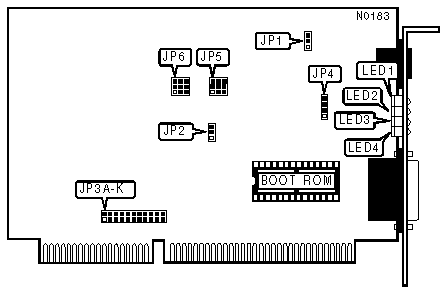

D-LINK
DE-200TP for PC AT
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Shielded/Unshielded twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
INTERRUPT REQUEST | ||||||||||||
|
IRQ |
JP3a |
JP3B |
JP3C |
JP3D |
JP3E |
JP3F |
JP3G |
JP3H |
JP3I |
JP3J |
JP3K | |
| » |
3 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
4 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
6 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
9 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
11 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
12 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
14 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
15 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Power is on |
|
LED1 |
Blinking |
Data is being transmitted |
|
LED2 |
On |
Network connection is good |
|
LED2 |
Blinking |
Data is being received |
|
LED3 |
On |
Collision detected on the network |
|
LED3 |
Off |
No collisions detected on the network |
|
LED4 |
Off |
Normal operation |
|
LED4 |
On |
Transmission interrupted due to abnormally long data stream output |
|
CHIP SET SELECTION | ||
|
Type |
JP4 | |
| » |
Standard |
Pins 1 & 2 Closed |
|
Non-standard 1 |
Pins 2 & 3 Closed | |
|
Non-standard 2 |
Pins 3 & 4 closed | |
|
Note:Non-standard PC AT systems and early versions of Chips & Technologies chip sets are not timing compatible
| ||
|
CABLE TYPE | ||
|
Type |
JP1/Jumpers 1-7 | |
| » |
Shielded/Unshielded twisted pair |
Pins 2 & 3 Closed |
|
AUI Transceiver via DB-15 port |
Pins 1 & 2 Closed | |
|
BOOT ROM ADDRESS - JP5 | ||||
|
Address |
Jumper 1 |
Jumper 2 |
Jumper 3 | |
|
C0000H |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed | |
|
C4000H |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed | |
| » |
C8000H |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
|
CC000H |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed | |
|
D0000H |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed | |
|
D4000H |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed | |
|
D8000H |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed | |
|
DC000H |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed | |
|
BOOT ROM SETTINGS | ||
|
Setting |
JP2 | |
| » |
Disabled |
Pins 2 & 3 Closed |
|
Enabled |
Pins 1 & 2 Closed | |
|
I/O BASE ADDRESS - JP6 | |||
|
Address |
Jumper 1 |
Jumper 2 |
Jumper 3 |
|
200H |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
|
220H |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
|
240H |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed |
|
260H |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed |
|
300H |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
|
320H |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
|
340H |
Pins 1 & 2 Closed |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
|
360H |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
