NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port
Boot ROM	Available

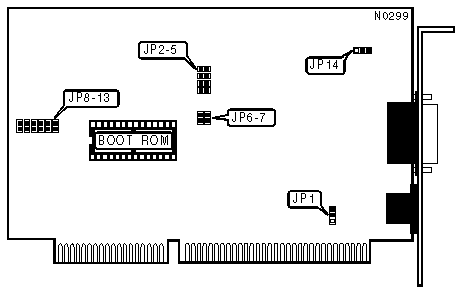

I/O CHRDY MODE
Mode		JP1
»	Normal (no ESDI HD controller installed)	Pins 1 & 2 Closed
	ESDI (ESDI HD controller installed)	Pins 2 & 3 Closed

INTERRUPT REQUEST
IRQ		JP2	JP3	JP4	JP5
	2	Closed	Open	Open	Open
»	3	Open	Closed	Open	Open
	4	Open	Open	Closed	Open
	5	Open	Open	Open	Closed

I/O BASE ADDRESS
Address		JP6	JP7
»	300h	Closed	Closed
	320h	Closed	Open
	340h	Open	Closed
	360h	Open	Open

BOOT ROM
Setting		JP8
»	Disabled	Open
	Enabled	Closed

BOOT ROM ADDRESS
Address		JP9	JP10	JP11	JP12	JP13
	C0000h	Closed	Closed	Closed	Closed	Closed
	C2000h	Open	Closed	Closed	Closed	Closed
	C4000h	Closed	Open	Closed	Closed	Closed
	C6000h	Open	Open	Closed	Closed	Closed
	C8000h	Closed	Closed	Open	Closed	Closed
	CA000h	Open	Closed	Open	Closed	Closed
	CC000h	Closed	Open	Open	Closed	Closed
	CE000h	Open	Open	Open	Closed	Closed
	D0000h	Closed	Closed	Closed	Open	Closed
	D2000h	Open	Closed	Closed	Open	Closed
	D4000h	Closed	Open	Closed	Open	Closed
	D6000h	Open	Open	Closed	Open	Closed
	D8000h	Closed	Closed	Open	Open	Closed
	DA000h	Open	Closed	Open	Open	Closed
»	DC000h	Closed	Open	Open	Open	Closed
	DE000h	Open	Open	Open	Open	Closed
	E0000h	Closed	Closed	Closed	Closed	Open
	E2000h	Open	Closed	Closed	Closed	Open
	E4000h	Closed	Open	Closed	Closed	Open
	E6000h	Open	Open	Closed	Closed	Open
	E8000h	Closed	Closed	Open	Closed	Open
	EA000h	Open	Closed	Open	Closed	Open
	EC000h	Closed	Open	Open	Closed	Open
	EE000h	Open	Open	Open	Closed	Open
	F0000h	Closed	Closed	Closed	Open	Open
	F2000h	Open	Closed	Closed	Open	Open

CABLE TYPE
Type		JP14
»	Shielded/Unshielded twisted pair	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 1 & 2 closed
