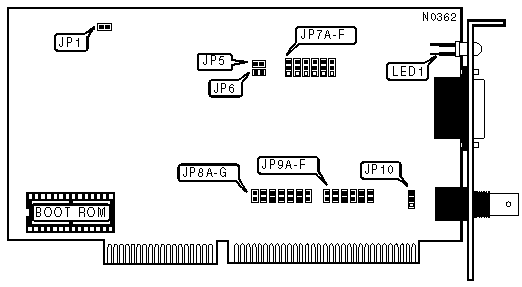

DANPEX CORPORATION
EN-2000B
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
ACTIVITY LED | |
|
Setting |
JP1 |
|
Enabled |
Closed |
|
Disabled |
Open |
|
Note:If the network hub has an activity LED for each line, setting this option to enabled will allow the hub LED to
| |
|
WAIT STATE | |||
|
Setting |
JP5 |
JP6 | |
| » |
0 wait states |
Open |
Open |
|
1 wait state |
Open |
Closed | |
|
2 wait states |
Closed |
Open | |
|
Note:This option is ignored if the card is installed in an IBM PC, PC/XT, or PS/2 Model 30. | |||
|
CABLE TYPE | ||
|
Type |
JP7A - JP7F | |
| » |
RG58A/U 50ohm coaxial |
Closed |
|
AUI transceiver via DB-15 port |
Open | |
|
INTERRUPT REQUEST | ||||||||
|
IRQ |
JP8A |
JP8B |
JP8C |
JP8D |
JP8E |
JP8F |
JP8G | |
|
2/9 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
| » |
3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
12 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
15 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
BOOT ROM | ||
|
Setting |
JP9A | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
BOOT ROM ADDRESS | |||
|
Address |
JP9B |
JP9C |
JP9D |
|
C8000h |
Closed |
Open |
Closed |
|
CC000h |
Open |
Open |
Closed |
|
D0000h |
Closed |
Closed |
Open |
|
D4000h |
Open |
Closed |
Open |
|
I/O BASE ADDRESS | |||
|
Address |
JP9E |
JP9F | |
| » |
300h |
Closed |
Closed |
|
320h |
Open |
Closed | |
|
340h |
Closed |
Open | |
|
360h |
Open |
Open | |
|
ONBOARD TERMINATOR | ||
|
Setting |
JP10 | |
| » |
Disabled |
Pins 1 & 2 closed |
|
Enabled |
Pins 2 & 3 closed | |
|
Note:If the card is on either side of the network segment, the onboard terminator may be enabled instead of using a T-connector and an external terminator. | ||
