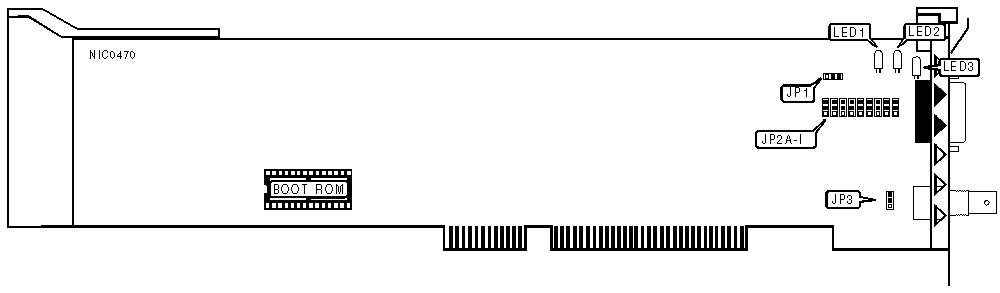

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit MCA
Topology	Linear bus
Wiring Type	RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

CABLE TYPE
Type		JP2B - JP2I
»	RG-58A/U 50ohm coaxial	Pins 1 & 2 closed
	AUI transceiver via DB-15 port	Pins 2 & 3 closed

ONBOARD TERMINATOR
Setting		JP3
»	Disabled	Pins 1 & 2 closed
	Enabled	Pins 2 & 3 closed
Note:If the card is on either end of a linear bus network segment, the onboard terminator may be used instead of an external terminator

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP1	Unused
JP2A	Pins 2 & 3 closed

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	Data is being transmitted
LED1	Off	Data is not being transmitted
LED2	On	Collision detected on network
LED2	Off	Normal operation
LED3	On	Data is being received
LED3	Off	Data is not being received
