NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit MCA
Topology	Linear bus
Wiring Type	RG58A/U 50ohm coaxial AUI transceiver via DB15
Boot ROM	Available

CABLE TYPE

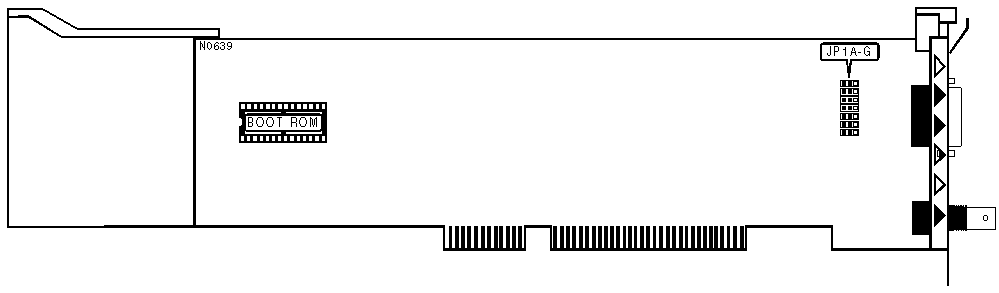

Type		JP1A-G
»	RG58A/U 50ohm coaxial	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 1 & 2 closed

MISCELLANEOUS NOTES

Software included with the card must be used in order to fully configure it.
