DANPEX CORPORATION
EN-7000P3
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
32-bit VESA |
|
Topology |
Star/Linear Bus |
|
Wiring Type |
AUI transceiver via DB-15 port RG58A/U 50ohm coaxial Unshielded twisted pair |
|
Boot ROM |
Available |
|

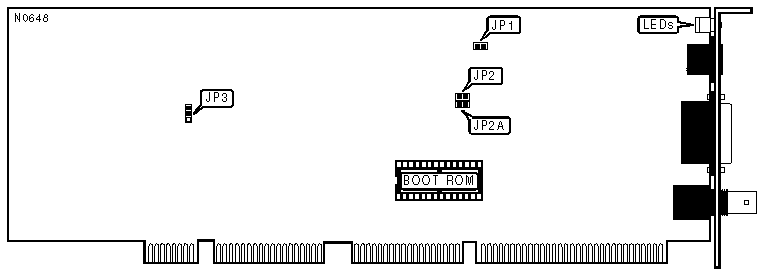

CONNECTIONS |
|
|
Purpose |
Location |
|
Status LED connector |
JP1 |
|
CABLE TYPE |
|||
|
Type |
JP2 |
JP2A |
|
|
» |
AUI transceiver via DB-15 port |
Closed |
Open |
|
|
RG58A/U 50ohm coaxial or Twisted Pair |
Open |
Closed |
|
CPU SPEED |
||
|
Speed |
JP3 |
|
|
» |
> 33MHz |
Pins 1 & 2 closed |
|
|
< 33MHz |
Pins 2 & 3 closed |
