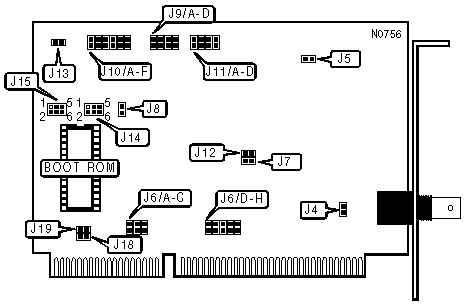

COMPEX, INC.
ENET16/V
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|
BASE MEMORY ADDRESS SELECT | |||||||
|
Address |
J10/A |
J10/B |
J10/C |
J10/D |
J10/E |
J10/F | |
| » |
D4000h |
Open |
Closed |
Open |
Closed |
Open |
Closed |
|
C0000h |
Open |
Closed |
Closed |
Closed |
Closed |
Closed | |
|
C2000h |
Open |
Closed |
Closed |
Closed |
Closed |
Open | |
|
C4000h |
Open |
Closed |
Closed |
Closed |
Open |
Closed | |
|
C6000h |
Open |
Closed |
Closed |
Closed |
Open |
Open | |
|
C8000h |
Open |
Closed |
Closed |
Open |
Closed |
Open | |
|
CA000h |
Open |
Closed |
Closed |
Open |
Closed |
Open | |
|
CC000h |
Open |
Closed |
Closed |
Open |
Open |
Closed | |
|
CE000h |
Open |
Closed |
Closed |
Open |
Open |
Open | |
|
D0000h |
Open |
Closed |
Open |
Closed |
Closed |
Closed | |
|
D2000h |
Open |
Closed |
Open |
Closed |
Closed |
Open | |
|
D6000h |
Open |
Closed |
Open |
Closed |
Open |
Open | |
|
D8000h |
Open |
Closed |
Open |
Open |
Closed |
Open | |
|
DA000h |
Open |
Closed |
Open |
Open |
Closed |
Open | |
|
DC000h |
Open |
Closed |
Open |
Open |
Open |
Closed | |
|
DE000h |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
BASE MEMORY CONFIGURATION | |||
|
Size |
J14 |
J15 | |
| » |
16KB |
Pins 1 & 2 closed |
Pins 1 & 3, 2 & 4 closed |
|
8KB |
Open |
Pins 1 & 3, 2 & 4 closed | |
|
32KB |
Pins 3 & 4 closed |
Pins 1 & 3, 4 & 6 closed | |
|
64KB |
Pins 5 & 6 closed |
Pins 3 & 5, 4 & 6 closed | |
|
BOOT ROM | ||
|
Setting |
J8 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
CONNECTIONS | |
|
Purpose |
Location |
|
External LED connector |
J13 |
|
INTERRUPT SELECT | |||||||||
|
IRQ |
J6/A |
J6/B |
J6/C |
J6/D |
J6/E |
J6/F |
J6/G |
J6/H | |
| » |
IRQ3 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
IRQ2 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ7 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
IRQ10 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
IRQ11 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
MODE/MEMORY CONFIGURATION | ||||||||
|
Mode |
RAM size |
Driver |
Slot Type |
J11/A |
J11/B |
J11/C |
J11/D | |
| » |
WD-CPX |
16KB |
COMPEX |
AT |
Open |
Closed |
Open |
Closed |
|
WD-CPX |
16KB |
WD8003 |
AT/XT |
Open |
Closed |
Open |
Closed | |
|
WD-CPX |
64KB |
COMPEX |
AT |
Open |
Closed |
Closed |
Closed | |
|
WD-CPX |
64KB |
WD8003 |
AT/XT |
Open |
Closed |
Closed |
Closed | |
|
WD-WDP |
16KB |
WDPLUS |
AT |
Open |
Open |
Open |
Closed | |
|
NE-NE2000 |
16KB |
NE2000 |
AT/XT |
Open |
Open |
Open |
Open | |
|
NE-NE1000 |
16KB |
NE1000 |
AT/XT |
Closed |
Open |
Open |
Open | |
|
I/O ADDRESS SELECT | |||||
|
Address |
J9/A |
J9/B |
J9/C |
J9/D | |
| » |
280h |
Closed |
Open |
Closed |
Closed |
|
200h |
Closed |
Closed |
Closed |
Closed | |
|
220h |
Closed |
Closed |
Closed |
Open | |
|
240h |
Closed |
Closed |
Open |
Closed | |
|
260h |
Closed |
Closed |
Open |
Open | |
|
2A0h |
Closed |
Open |
Closed |
Open | |
|
2C0h |
Closed |
Open |
Open |
Closed | |
|
2E0h |
Closed |
Open |
Open |
Open | |
|
300h |
Open |
Closed |
Closed |
Closed | |
|
320h |
Open |
Closed |
Closed |
Open | |
|
340h |
Open |
Closed |
Open |
Closed | |
|
360h |
Open |
Closed |
Open |
Open | |
|
380h |
Open |
Open |
Closed |
Closed | |
|
3A0h |
Open |
Open |
Closed |
Open | |
|
3C0h |
Open |
Open |
Open |
Closed | |
|
3E0h |
Open |
Open |
Open |
Open | |
|
IOCHRDY | |||
|
Setting |
J18 |
J19 | |
| » |
Normal |
Closed |
Open |
|
Extended |
Open |
Closed | |
|
ZERO WAIT STATE | |||
|
Setting |
J7 |
J12 | |
| » |
Disabled |
Open |
Closed |
|
Enabled |
Closed |
Open | |
