COMTREE USA

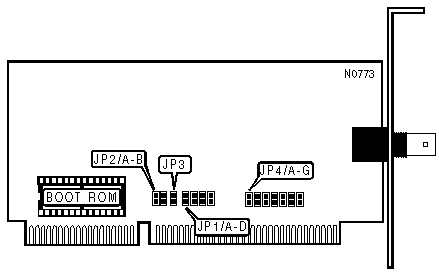

CX1605
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
RG58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|
BASE MEMORY ADDRESS SELECT | |||||
|
Address |
JP1/A |
JP1/B |
JP1/C |
JP1/D | |
| » |
BOOT ROM Disabled |
Open |
N/A |
N/A |
N/A |
|
C0000h |
Closed |
Closed |
Closed |
Closed | |
|
C4000h |
Closed |
Open |
Closed |
Closed | |
|
C8000h |
Closed |
Closed |
Open |
Closed | |
|
CC000h |
Closed |
Open |
Open |
Closed | |
|
D0000h |
Closed |
Closed |
Closed |
Open | |
|
D4000h |
Closed |
Open |
Closed |
Open | |
|
D8000h |
Closed |
Closed |
Open |
Open | |
|
DC000h |
Closed |
Open |
Open |
Open | |
|
I/O ADDRESS SELECT | |||
|
Address |
JP2/A |
JP2/B | |
| » |
300h |
Closed |
Closed |
|
320h |
Open |
Closed | |
|
340h |
Closed |
Open | |
|
360h |
Open |
Open | |
|
SYSTEM COMPATIBILITY | ||
|
Setting |
JP3 | |
| » |
Standard PC/AT compatible |
Closed |
|
PS/2 30-286 or NEAT PC/AT 286 |
Open | |
|
INTERRUPT SELECT | ||||||||
|
IRQ |
JP4/A |
JP4/B |
JP4/C |
JP4/D |
JP4/E |
JP4/F |
JP4/G | |
| » |
IRQ3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ2 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
