NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	32-Bit NuBus (Apple)
Topology:	Linear Bus Star
Wiring Type	AUI transceiver via DB-15 port RG58A/U 50ohm coaxial Shielded/Unshielded twisted pair
Boot ROM	Available

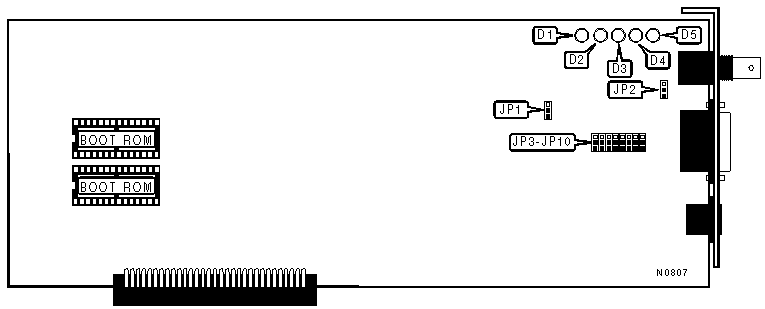

LINK INTEGRITY FUNCTION
Setting		JP1
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed

ON-BOARD 50OHM TERMINATOR
Setting		JP2
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

CABLE TYPE
Type		JP3	JP4	JP5-JP10
»	RG58A/U 50ohm coaxial	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
	AUI transceiver via DB-15 port	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
	Shielded/Unshielded twisted pair	Pins 2 & 3 closed	Pins 2 & 3 closed	N/A

DIAGNOSTIC LEDS
LED	Status	Condition
D1	On	Twisted pair network connection is good
D1	Off	Twisted pair network connection is broken
D2	On/Blinking	Data is being received
D2	Off	Data is not being received
D3	On/Blinking	Data is being transmitted
D3	Off	Data is not being transmitted
D4	On/Blinking	Collision detected on network
D4	Off	Normal operation
D5	On	Reversed polarity condition detected
D5	Off	Normal operation
