D-LINK
DE-205/4 TP
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|
CONNECTIONS | |
|
Purpose |
Location |
|
DE-205/TP connector |
CN1 |
|

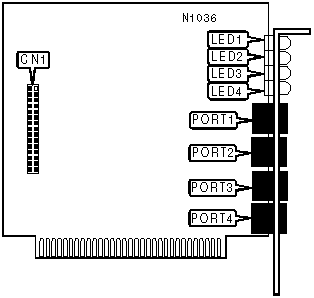

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Port 1 connection is good |
|
LED1 |
Green |
Off |
Port 1 connection is not good |
|
LED2 |
Green |
On |
Port 2 connection is good |
|
LED2 |
Green |
Off |
Port 2 connection is not good |
|
LED3 |
Green |
On |
Port 3 connection is good |
|
LED3 |
Green |
Off |
Port 3 connection is not good |
|
LED4 |
Green |
On |
Port 4 connection is good |
|
LED4 |
Green |
Off |
Port 4 connection is not good |
