NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Star
Wiring Type	AUI Transceiver via DB-15 port
Boot ROM	Not available

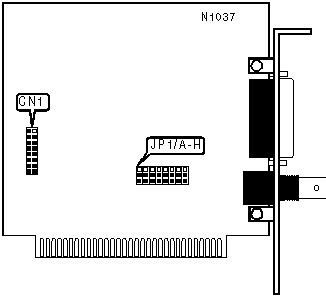

CONNECTIONS
Purpose	Location
DE-205/TP connector	CN1

CABLE TYPE CONFIGURATION
TYPE	JP1/A-H
Thin coaxial cable	pins 1 & 2 closed
Thick coaxial cable	pins 2 & 3 closed
