NIC Type	Ethernet
Transfer Rate	10/100Mbps
Data Bus	PCI
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

CONNECTION
Purpose	Location

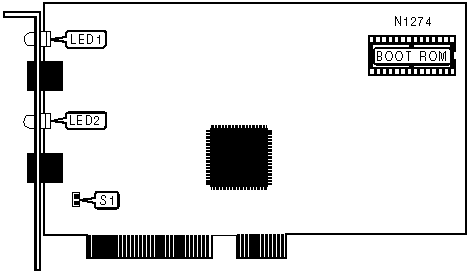

External LED connector	S1

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	Network connection is good at 100Mbps
LED1	Off	Network connection is broken at 100Mbps
LED2	On	Network connection is good at 10Mbps
LED2	Off	Network connection is broken at 10Mbps
