NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	NuBus
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial
Boot ROM	Available

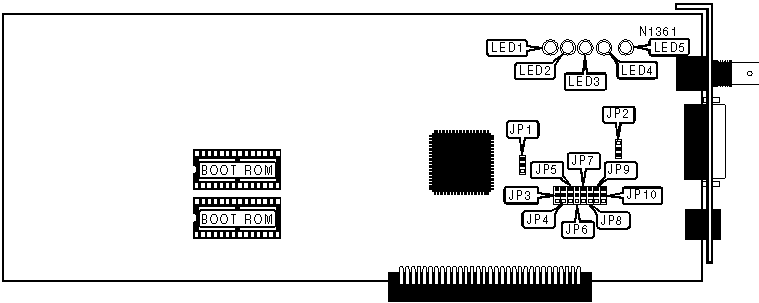

10BASE-T LINK CONFIGURATION
» Setting		JP1
»	Enabled	Pins 2 & 3 closed
»	Disabled	Pins 1 & 2 closed

ON-BOARD 50OHM TERMINATOR CONFIGURATION
» Setting		JP2
»	Enabled	Pins 1 & 2 closed
»	Disabled	Pins 2 & 3 closed

CABLE TYPE SELECTION
Cable Type	JP3	JP4	JP5	JP6	JP7	JP8	JP9	JP10
Unshielded twisted pair	1 & 2	1 & 2	N/A	N/A	N/A	N/A	N/A	N/A
AUI Transceiver via DB-15 port	2 & 3	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2	1 & 2
RG-58A/U 50ohm coaxial	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3	2 & 3
Note: Pins designated should be in the closed position.

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	10Base-T network connection is good
LED1	Off	10Base-T network connection is broken
LED2	Blinking	Data is being received
LED2	Off	Data is not being received
LED3	Blinking	Data is being transmitted
LED3	Off	Data is not being transmitted
LED4	Blinking	Network collision has been detected
LED4	Off	Network collision has not been detected
LED5	On	Polarity is reversed
LED5	Off	Polarity is normal
