NIC Type	Ethernet
Transfer Rate	10/100Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded/shielded twisted pair
Boot ROM	Not available

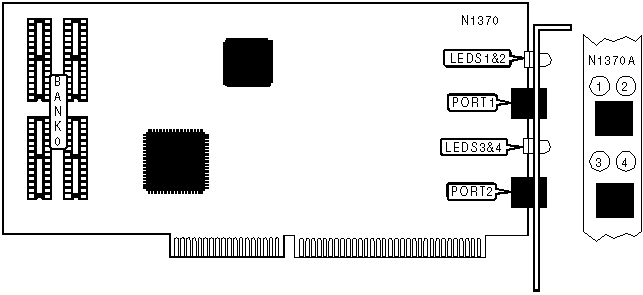

CONNECTIONS
Purpose	Location	Purpose	Location
100Base-T port	Port 1	10Base-T port	Port 2

CACHE
Size	BANK 0
128KB	(4) 32K x 8

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	100Base-T network connection is good
LED1	Off	100Base-T network connection is broken
LED2	On	Data is being transmitted/received at 100Mbps
LED2	Off	Data is not being transmitted/received at 100Mbps
LED3	On	10Base-T network connection is good
LED3	Off	10Base-T network connection is broken
LED4	On	Data is being transmitted/received at 10Mbps
LED4	Off	Data is not being transmitted/received at 10Mbps
