Card Type	Ethernet
Data Bus	32-bit VESA Local Bus
Maximum Network Rate	10Mbps
Topology	Linear Bus/Star
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port
Boot ROM	Not available

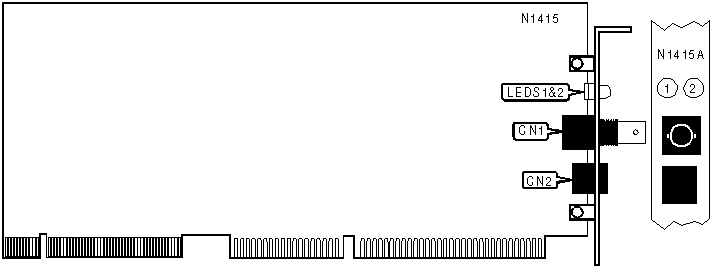

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15 port	CN1	Unshielded twisted pair	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	10Base-T network connection is good
LED1	Green	Off	10Base-T network connection is broken
LED2	Yellow	On	Data is being received
LED2	Yellow	Off	Data is not being received
Note: The exact location of LED1 and LED2 is unidentified.
