NIC Type	Ethernet
Chipset	UL0020
Network Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus/Star
Wire Type	Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial
Boot ROM	Available

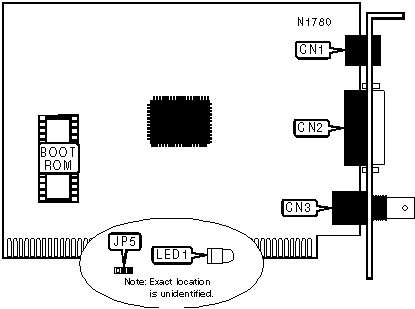

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair connector	CN1	RG-58A/U 50ohm coaxial connector	CN3
AUI transceiver via DB-15 port	CN2

CABLE TYPE
Setting	JP5
AUI transceiver via DB-15 port	Pins 1 & 2 closed
RG-58A/U 50ohm coaxial	Pins 2 & 3 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Off	Network connection is broken
