Card Type	Ethernet transceiver
Network Transfer Rate	10Mbps
Data Bus	Macintosh AAUI
Topology	Linear Bus/Star
Wire Type	Unshielded twisted pair RG-58A/U 50ohm coaxial

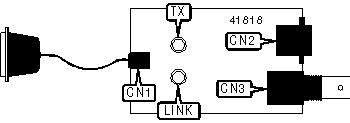

CONNECTIONS
Function	Label	Function	Label
Macintosh AAUI connector	CN1	RG-58A/U 50ohm coaxial connector	CN3
Unshielded twisted pair connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TX	Unidentified	On	Transceiver is transmitting to the network
TX	Unidentified	Off	Transceiver is not transmitting to the network
LINK	Unidentified	On	Network connection is good
LINK	Unidentified	Off	Network connection is broken
