DAYNA COMMUNICATIONS, INC.
SCSI/LINK-3, SCSI/LINK-3 PB
|
Card Type |
Network Interface Card |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Data Bus |
SCSI |
|

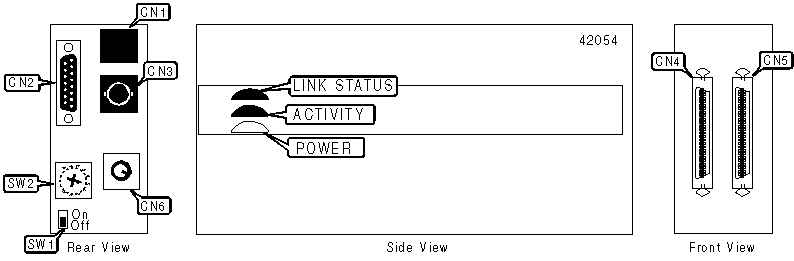

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
RJ-45 connector |
CN1 |
25-pin SCSI connector - input |
CN4 |
|
AUI transceiver via DB-15 |
CN2 |
25-pin SCSI connector - output |
CN5 |
|
BNC connector |
CN3 |
DC Power connector |
CN6 |
|
Note: Connectors CN4 & CN5 allow SCSI/Link to be daisy-chained with other devices. | |||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
SCSI/Link termination switch enabled |
SW1 |
On |
|
SCSI/Link termination switch disabled |
SW1 |
Off | |
|
Note: If the SCSI/Link is not the last device in the SCSI chain, the internal termination switch must be turned off. | |||
|
SCSI ID SELECTION | ||
|
ID |
SW2 | |
|
0 |
0 | |
|
1 |
1 | |
|
2 |
2 | |
| » |
3 |
3 |
|
4 |
4 | |
|
5 |
5 | |
|
6 |
6 | |
|
7 |
7 | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
Power |
Amber |
On |
Power is on |
|
Power |
Amber |
Off |
Power is off |
|
Activity |
Green |
On |
Data is being transmitted/received |
|
Activity |
Green |
Off |
Data is not being transmitted/received |
|
Activity |
Red |
On |
Error condition |
|
Link status |
Green |
On |
UTP link is good |
|
Link status |
Green |
Off |
UTP link is broken |
|
MISCELLANEOUS TECHNICAL NOTES |
|
The SCSI/Link-3 comes with a 25-pin to 25-pin SCSI cable that connects to Desktop Macintosh computers. The SCSI/Link-3PB comes with a 30-pin to 25-pin cable that connects to Powerbook Macintosh computers. Additional cables are available from manufacturer. |
