CABLETRON SYSTEMS, INC.
TPFOT-2
|
Device Type |
Transceiver |
|
NIC Type |
Ethernet |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Not available |
|
Network Transfer Rate |
10Mbps |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair Fiber optic |
|
Data Bus |
External |
|

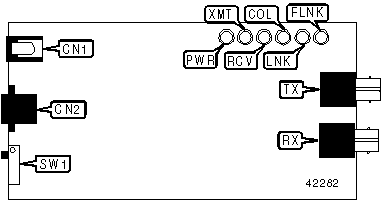

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Power jack |
CN1 |
Fiber optic connector (ST) - transmit |
TX |
|
RJ-45 UTP connector |
CN2 |
Fiber optic connector (ST) - receive |
RX |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
RJ-45 configured for crossover operation |
SW1 |
On |
|
RJ-45 configured for straight-through operation |
SW1 |
Off |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
PWR |
Green |
On |
Power is on |
|
PWR |
Green |
Off |
Power is off |
|
XMT |
Green |
Blinking |
Data is being received from fiber optic and transmitted from RJ45 |
|
XMT |
Green |
Off |
Data is not being received from fiber optic and transmitted from RJ45 |
|
RCV |
Yellow |
Blinking |
Data is being received from RJ45 and transmitted from fiber optic |
|
RCV |
Yellow |
Off |
Data is not being received from RJ45 and transmitted from fiber optic |
|
COL |
Red |
Blinking |
Collision detected on network |
|
COL |
Red |
Off |
No collision detected on network |
|
LNK |
Green |
On |
UTP link is good |
|
LNK |
Green |
Off |
UTP link is broken |
|
FLNK |
Green |
On |
Fiber optic link is good |
|
FLNK |
Green |
Off |
Fiber optic link is broken |
