Device Type	Media Adapter
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Unshielded twisted pair, RG-58A/U 50ohm coaxial Fiber optic cable
Data Bus	External

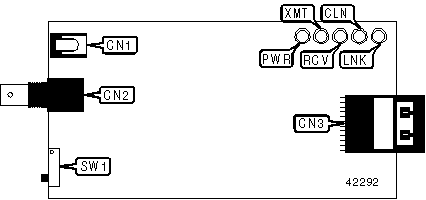

CONNECTIONS
Function	Label	Function	Label
Power jack	CN1	Fiber optic connector (SMA)	CN3
RG-58A/U connector	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
RG-58AU 50ohm coaxial connector terminated internally	SW1	On
RG-58AU 50ohm coaxial connector terminated externally	SW1	Off

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Green	On	Power is on
PWR	Green	Off	Power is off
XMT	Green	Blinking	Data is being transmitted from the coaxial port and received from the fiber optic port.
XMT	Green	Off	Data is not being transmitted from the coaxial port and received from the fiber optic port.
RCV	Yellow	Blinking	Data is being received from the coaxial port and transmitted from the fiber optic port
RCV	Yellow	Off	Data is not being received from the coaxial port and transmitted from the fiber optic port
CLN	Red	Blinking	Collision detected on network
CLN	Red	Off	No collision detected on network
LNK	Green	On	Fiber optic link is good
LNK	Green	Off	Fiber optic link is broken
