NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA
Topology	Star Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial Unshielded twisted pair AUI transceiver via DB-15 port
Boot ROM	Available

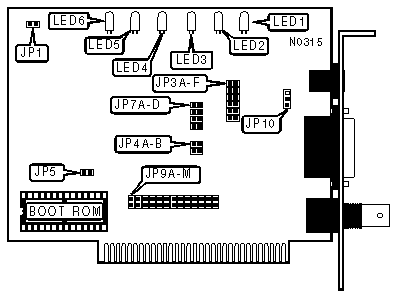

CONNECTORS
Setting	Jumper
External power LED	JP1

CABLE TYPE
Type		JP3A-JP3F	JP4A & JP4B	JP10
»	RG-58A/U 50ohm coaxial	Open	Closed	Pins 2 & 3 closed
	Unshielded twisted pair	Closed	Open	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Open	Open	Pins 1 & 2 closed

BOOT ROM ADDRESS
Address		JP7A	JP7B	JP7C	JP7D
	C0000h	Closed	Closed	Closed	Closed
	C4000h	Closed	Closed	Closed	Open
»	C8000h	Closed	Closed	Open	Closed
	CC000h	Closed	Closed	Open	Open
	D0000h	Closed	Open	Closed	Closed
	D4000h	Closed	Open	Closed	Open
	D8000h	Closed	Open	Open	Closed
	DC000h	Closed	Open	Open	Open

BOOT ROM
Setting		JP5
»	Disabled	Open
	Enabled	Closed

I/O BASE ADDRESS
Address		JP9A	JP9B	JP9C
»	300h	Closed	Closed	Closed
	320h	Closed	Closed	Open
	340h	Closed	Open	Closed
	360h	Closed	Open	Open

INTERRUPT SETTINGS
IRQ	JP7D	JP7E	JP7F	JP7G	JP7H	JP7I
2	Closed	Open	Open	Open	Open	Open
3	Open	Closed	Open	Open	Open	Open
4	Open	Open	Closed	Open	Open	Open
5	Open	Open	Open	Closed	Open	Open
6	Open	Open	Open	Open	Closed	Open
7	Open	Open	Open	Open	Open	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Red	On	Card is transmitting for an extended amount of time
LED1	Red	Off	Normal operation
LED2	Green	On	Data is being transmitted
LED2	Green	Off	Data is not being transmitted
LED3	Green	On	Data is being received
LED3	Green	Off	Data is not being received
LED4	Red	On	A collision is detected on the network
LED4	Red	Off	Normal operation
LED5	Yellow	On	A reversed polarity twisted pair is detected
LED5	Yellow	Off	Normal operation
LED6	Green	On	Network connection is good
LED6	Green	Off	Network connection is broken
