NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star Linear Bus
Wiring Type	Shielded/Unshielded twisted pair RG58A/U 50ohm coaxial AUI transceiver via DB-15 port
Boot ROM	Available

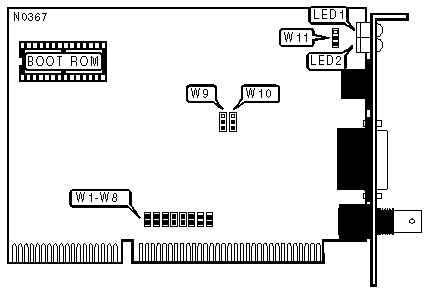

BOOT ROM
Setting		W1
»	Disabled	Open
	Enabled	Closed

I/O BASE ADDRESS AND BOOT ROM ADDRESS
I/O Address		Boot ROM Address	W2	W3
»	300-31Fh	C8000-CBFFFh	Closed	Closed
	320-33Fh	CC000-CFFFFh	Open	Closed
	340-35Fh	D0000-D3FFFh	Closed	Open
	360-37Fh	D4000-D7FFFh	Open	Open

EXTENDED WAIT STATE
Setting		W4
»	Disabled	Open
	Enabled	Closed
Note:Some cards require more wait states in the I/O cycle. If you are having difficulties booting, try enabling the

INTERRUPT REQUEST
IRQ		W5	W6	W7	W8
	2/9	Open	Open	Open	Closed
»	3	Closed	Open	Open	Open
	4	Open	Closed	Open	Open
	5	Open	Open	Closed	Open

CABLE TYPE
Type		W9	W10
»	RG58A/U 50ohm coaxial	Pins 1 & 2 closed	Pins 1 & 2 closed
	Shielded/Unshielded twisted pair	Pins 2 & 3 closed	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 2 & 3 closed	Pins 1 & 2 closed

LINK INTEGRITY TEST
Setting		W11
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Twisted pair network connection is good
LED1	Green	Off	Twisted pair network connection is broken
LED2	Green	Blinking	Data is being transmitted
LED2	Red	Blinking	Data is being received
LED2	N/A	Off	Data is not being received or transmitted
Note:When Link Integrity is disabled, LED1 will remain off. This does not indicate a faulty connection.
