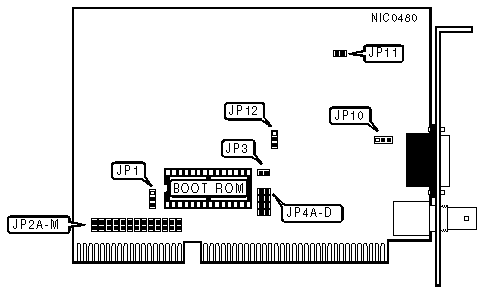

EDIMAX COMPUTER COMPANY
2000C/EN-3360 V2.4
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
COMPATIBILITY MODE | ||
|
Setting |
JP1 | |
| » |
Disabled |
Pins 1 & 2 closed |
|
Enabled |
PIns 2 & 3 closed | |
|
Note:On some systems the data bus timing is not truly IBM PC/AT compatible. If the card is not
| ||
|
INTERRUPT SETTINGS | |||||||||||
|
IRQ |
JP2A |
JP2B |
JP2C |
JP2D |
JP2E |
JP2F |
JP2G |
JP2H |
JP2I |
JP2J |
JP2K |
|
2/9 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
3 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
4 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
5 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
6 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
7 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
10 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
11 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
12 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
14 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
I/O BASE ADDRESS | |||
|
Address |
JP2L |
JP2M | |
| » |
300h |
Closed |
Closed |
|
320h |
Closed |
Open | |
|
340h |
Open |
Closed | |
|
360h |
Open |
Open | |
|
BOOT ROM | ||
|
Setting |
JP3 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
BOOT ROM ADDRESS | |||||
|
Address |
JP4A |
JP4B |
JP4C |
JP4D | |
|
C0000h |
Closed |
Closed |
Closed |
Closed | |
|
C4000h |
Closed |
Closed |
Closed |
Open | |
| » |
C8000h |
Closed |
Closed |
Open |
Closed |
|
CC000h |
Closed |
Closed |
Open |
Open | |
|
D0000h |
Closed |
Open |
Closed |
Closed | |
|
D4000h |
Closed |
Open |
Closed |
Open | |
|
D8000h |
Closed |
Open |
Open |
Closed | |
|
DC000h |
Closed |
Open |
Open |
Open | |
|
CABLE TYPE | |||
|
Type |
JP10 |
JP12 | |
| » |
RG-58A/U 50ohm coaxial |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
|
AUI transceiver via DB-15 port |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed | |
|
FACTORY CONFIGURED SETTINGS | |
|
Jumper |
Setting |
|
JP6 |
Unused |
|
CONNECTORS | |
|
Setting |
Location |
|
External power LED. |
JP11 |
