GATEWAY COMMUNICATIONS, INC.
G/ETHERNET MICRO CHANNEL ADAPTER
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit MCA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Not available |
|
CABLE TYPE | ||
|
Type |

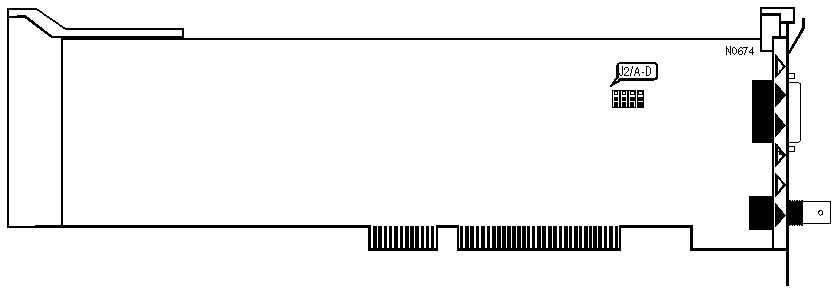

J2/A-D | |
| » |
RG58A/U 50ohm coaxial |
Pins 1 & 2 closed |
|
AUI transceiver via DB-15 port |
Pins 2 & 3 closed | |
