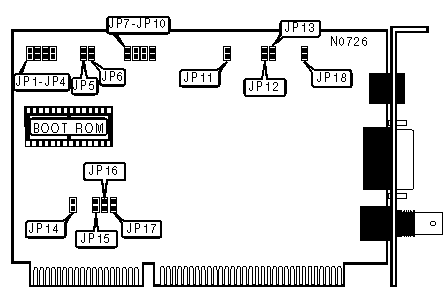

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus Star
Wiring Type	AUI transceiver via DB-15 port RG-58A/U 50ohm coaxial RG-58C/U 50ohm coaxial Unshielded Twisted Pair
Boot ROM	Available

CABLE TYPE
Type		JP5	JP6
»	Thin Ethernet	Open	Closed
	Thick Ethernet	Closed	Open
	TPI (10Base-T compatible squelch)	Open	Open
	TPI (reduced squelch)	Closed	Closed

BASE I/O ADDRESS
Address		JP15	JP16	JP17
»	300h	Open	Open	Open
	Software	Open	Open	Closed
	240h	Open	Closed	Open
	280h	Open	Closed	Closed
	2C0h	Closed	Open	Open
	320h	Closed	Open	Closed
	340h	Closed	Closed	Open
	360h	Closed	Closed	Closed

BOOT ROM ADDRESS
Address		Size	JP1	JP2	JP3	JP4
»	Disabled	No Boot PROM	Open	Open	Open	Open
	C000h	8K/16K	Open	Open	Closed	Open
	C400h	8K/16K	Open	Open	Closed	Closed
	C800h	8K/16K	Open	Closed	Open	Open
	CC00h	8K/16K	Open	Closed	Open	Closed
	D000h	8K/16K	Open	Closed	Closed	Open
	D400h	8K/16K	Open	Closed	Closed	Closed
	D800h	8K/16K	Closed	Open	Open	Open
	DC00h	8K/16K	Closed	Open	Open	Closed
	C000h	32K/32K	Closed	Open	Closed	Open
	C800h	32K/32K	Closed	Open	Closed	Closed
	D000h	32K/32K	Closed	Closed	Open	Open
	D800h	32K/32K	Closed	Closed	Open	Closed
	C000h	64K/64K	Closed	Closed	Closed	Open
	D000h	64K/64K	Closed	Closed	Closed	Closed

INTERRUPT REQUEST
IRQ		JP7	JP8	JP9	JP10
»	IRQ3	Closed	Open	Open	Open
	IRQ4	Closed	Open	Open	Closed
	IRQ5	Closed	Open	Closed	Open
	IRQ9	Closed	Open	Closed	Closed
	IRQ10	Closed	Closed	Open	Open
	IRQ11	Closed	Closed	Open	Closed
	IRQ12	Closed	Closed	Closed	Open
	IRQ15	Closed	Closed	Closed	Closed

LINK INTEGRITY
Setting		JP11
»	Enabled	Open
	Disabled	Closed

I/O CHRDY MODE
Mode		JP12
»	CHRDY generated after command strobe	Open
	CHRDY generated after BALE goes high	Closed

I/O 16 CONTROL
Mode		JP13
»	I/O 16 generated only on address decode	Open
	I/0 16 generated after IORD or IOWR go active	Closed

MEMORY / I/O MODE
Mode		JP14
»	I/O mode	Open
	Shared memory mode	Closed

CARD CONFIGURATION
Select		JP18
»	Software configuration	Closed
	Hardware (jumpers) configuration	Open
