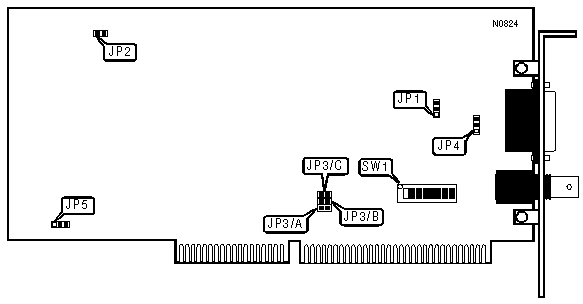

EVEREX SYSTEMS, INC.
SPEEDLINK/PC-16
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear bus Star |
|
Wiring Type |
RG58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Location Unidentified |
|
I/O ADDRESS SELECT | ||||||||
|
Node |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
340-343h |
On |
On |
On |
On |
Off |
On |
Off |
Off |
|
348-34Bh |
On |
Off |
On |
On |
Off |
On |
Off |
Off |
|
358-35Bh |
On |
On |
Off |
On |
Off |
On |
Off |
Off |
|
358-35Bh |
On |
Off |
Off |
On |
Off |
On |
Off |
Off |
|
360-363h |
On |
On |
On |
Off |
Off |
On |
Off |
Off |
|
368-36Bh |
On |
Off |
On |
Off |
Off |
On |
Off |
Off |
|
370-373h |
On |
On |
Off |
Off |
Off |
On |
Off |
Off |
|
378-37Bh |
On |
Off |
Off |
Off |
Off |
On |
Off |
Off |
|
390-393h |
On |
On |
Off |
On |
On |
Off |
Off |
Off |
|
398-39Bh |
On |
Off |
Off |
On |
On |
Off |
Off |
Off |
|
CABLE TYPE SELECT | ||
|
Setting |
JP1 | |
| » |
Thin Ethernet |
Pins 2 & 3 closed |
|
Ethernet |
Pins 1 & 2 closed | |
|
PERFORMANCE LEVEL SELECT | ||
|
Setting |
JP2 | |
| » |
High |
Open |
|
Normal |
Closed | |
|
BASE MEMORY ADDRESS SELECT | |||
|
Address Range |
JP3/A |
JP3/B |
JP3/C |
|
Boot ROM disabled |
Closed |
Closed |
Closed |
|
C4000-C7FFF |
Open |
Open |
Open |
|
C8000-CBFFF |
Open |
Closed |
Closed |
|
CC000-CFFFF |
Closed |
Open |
Closed |
|
D0000-D3FFF |
Open |
Open |
Closed |
|
D4000-D7FFF |
Closed |
Closed |
Open |
|
D8000-DBFFF |
Open |
Closed |
Open |
|
DC000-DFFFF |
Closed |
Open |
Open |
|
ETHERNET FRAME TYPE SELECT | ||
|
Setting |
JP4 | |
| » |
802.3 |
Pins 1 & 2 closed |
|
802.2 |
Pins 2 & 3 closed | |
|
IOCHRDY | ||
|
Setting |
JP5 | |
| » |
Normal IOCHRDY |
Pins 1 & 2 closed |
|
Early IOCHRDY |
Pins 2 & 3 closed | |
|
MISCELLANEOUS TECHNICAL NOTE |
|
Note: Interrupt selection is configured via a proprietary software package.. |
