HEWLETT PACKARD, INC.
D2378B
|

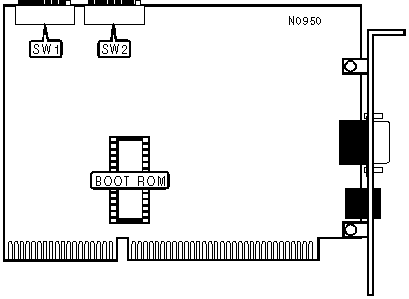

NIC Type |
Token Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair |
|
Boot ROM |
Available |
|
BASE I/O ADDRESS SELECTION | |||
|
Address |
SW1/2 |
SW1/3 | |
| » |
A20 & A30 |
Off |
Off |
|
A24 & A40 |
On |
Off | |
|
A50 & A60 |
Off |
On | |
|
A54 & A70 |
On |
On | |
|
INTERRUPT SELECTION | ||||
|
IRQ |
SW2/1 |
SW2/2 |
SW2/3 | |
| » |
9 |
Off |
Off |
Off |
|
3 |
On |
Off |
On | |
|
5 |
Off |
On |
On | |
|
7 |
On |
On |
On | |
|
10 |
On |
Off |
Off | |
|
11 |
Off |
On |
Off | |
|
12 |
On |
On |
Off | |
|
15 |
Off |
Off |
On | |
|
DMA CHANNEL SELECTION | ||||
|
Channel |
SW2/4 |
SW2/5 |
SW2/6 | |
| » |
5 |
Off |
Off |
Off |
|
0 |
On |
On |
On | |
|
1 |
Off |
Off |
On | |
|
3 |
On |
Off |
On | |
|
6 |
On |
Off |
Off | |
|
7 |
Off |
On |
Off | |
|
NETWORK SPEED SELECTION | ||
|
Speed |
SW1/1 | |
| » |
4 |
Off |
|
16 |
On | |
|
FACTORY CONFIGURED - DO NOT ALTER | |
|
Switch |
Position |
|
SW1/4 |
Off |
|
SW1/5 |
On |
|
SW1/6 |
On |
|
SW1/7 |
Off |
|
SW1/8 |
Off |
|
SW2/7 |
Off |
|
SW2/8 |
Off |
