NIC Type	Token Ring
Transfer Rate	4/16Mbps
Data Bus	16-bit ISA
Topology	Ring
Wiring Type	Shielded twisted pair Unshielded twisted pair
Boot ROM	Available

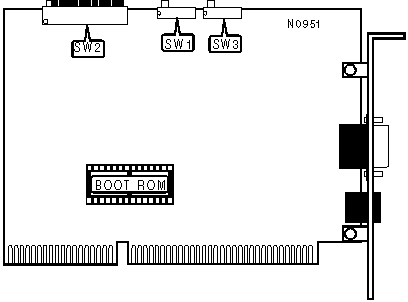

BASE I/O ADDRESS SELECTION
Address		SW2/9	SW2/10
»	A20 & A30	Off	Off
	A24 & A40	On	Off
	A50 & A60	Off	On
	A54 & A70	On	On

INTERRUPT SELECTION
IRQ		SW2/7	SW2/8
»	9	On	On
	3	On	Off
	10	Off	On
	11	Off	Off

DMA CHANNEL SELECTION
DMA		SW2/11	SW2/12
»	5	On	On
	6	On	Off
	7	Off	On
	Programmed I/O	Off	Off
Note: Programmed I/O overrides when used in an 8-bit slot.

NETWORK SPEED SELECTION
Speed		SW1
»	4	Off
	16	On

CABLE TYPE SELECTION
Speed		SW1
»	Unshielded Twisted Pair	Off
	Shielded Twisted Pair	On

FACTORY CONFIGURED - DO NOT ALTER
Switch	Position
SW2/1	On
SW2/2	On
SW2/3	On
SW2/4	Off
SW2/5	Off
SW2/6	On
