NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus/Star

Wiring Type

AUI Transceiver via DB-15 port

Boot ROM

Available

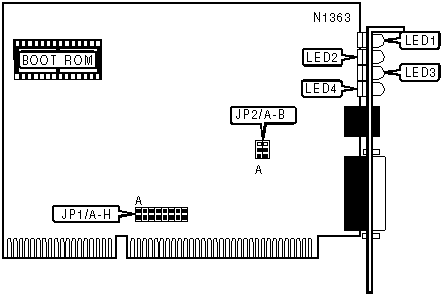

BOOT ROM CONFIGURATION

Setting

JP1/A

Enabled

Closed

»

Disabled

Open

ADDRESS SELECTION

Base I/O Address

Boot ROM Address

JP1/B

JP1/C

300h

C800h

Closed

Closed

320h

CC00h

Open

Closed

340h

D000h

Closed

Open

360h

D400h

Open

Open

WAIT STATE CONFIGURATION

Wait states

JP1/D

Enabled

Closed

»

Disabled

Open

INTERRUPT SELECTION

IRQ

JP1/E

JP1/F

JP1/G

JP1/H

»

3

Closed

Open

Open

Open

4

Open

Closed

Open

Open

5

Open

Open

Closed

Open

9

Open

Open

Open

Closed

CABLE TYPE SELECTION

Cable Type

JP2/A

»

Unshielded Twisted Pair

Pins 2 & 3 closed

AUI Transceiver via DB-15 port

Pins 1 & 2 closed

LINK TEST CONFIGURATION

Setting

JP2/B

»

Enabled

Pins 1 & 2 closed

Disabled

Pins 2 & 3 closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

On

Data is not being transmitted

LED1

Yellow

Off

Data is being transmitted

LED2

Red

On

Data is not being received

LED2

Red

Off

Data is being received

LED3

Green

On

10Base-T network connection is good

LED3

Green

Off

10Base-T network connection is broken or JP2/B is disabled

LED4

Red

On

Polarity is reversed

LED4

Red

Off

Polarity is normal
