FARALLON COMPUTING, INC.
ETHERWAVE MAC CARD
|
Card Type |
Ethernet |
|
Data Bus |
NuBus |
|
Maximum network Rate |
10Mbps |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Not available |
|

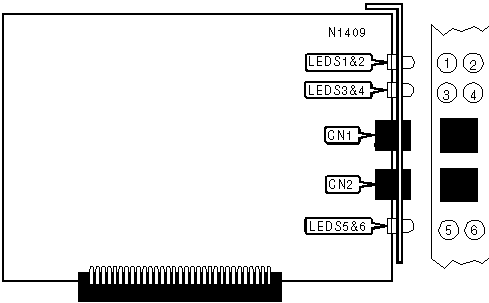

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Unshielded twisted pair port (Port 1) |
CN1 |
Unshielded twisted pair port (Port 2) |
CN2 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Orange |
Blinking |
Collision of jabber is detected on network |
|
LED1 |
Orange |
Off |
Collision of jabber is not detected on network |
|
LED2 |
Yellow |
Blinking |
Data is being transmitted |
|
LED2 |
Yellow |
Off |
Data is not being transmitted |
|
LED3 |
Green |
On |
Network connection is good on Port 1 |
|
LED3 |
Green |
Off or Blinking |
Network connection is broken or bad on Port 1 |
|
LED4 |
Yellow |
Blinking |
Data is being received on Port 1 |
|
LED4 |
Yellow |
Off |
Data is not being received on Port 1 |
|
LED5 |
Green |
On |
Network connection is good on Port 2 |
|
LED5 |
Green |
Off or Blinking |
Network connection is broken or bad on Port 2 |
|
LED6 |
Yellow |
Blinking |
Data is being received on Port 2 |
|
LED6 |
Yellow |
Off |
Data is not being received on Port 2 |
