Card Type	Ethernet
Data Bus	32-bit LC processor direct slot (Apple)
Maximum network Rate	10Mbps
Topology	Daisy Chain
Wiring Type	Unshielded twisted pair
Boot ROM	Not available

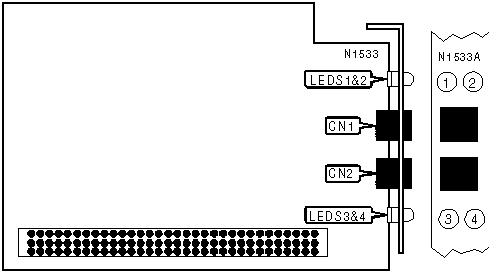

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair port (Port 1)	CN1	Unshielded twisted pair port (Port 2)	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good on Port 1
LED1	Green	Blinking Irregularly	Bad connection
LED1	Green	Off	Network connection is broken on Port 1
LED2	Yellow	Blinking	Data is being received on Port 1
LED2	Yellow	Off	Data is not being received on Port 1
LED3	Green	On	Network connection is good on Port 2
LED3	Green	Off	Network connection is broken on Port 2
LED4	Yellow	Blinking	Data is being received on Port 2
LED4	Yellow	Off	Data is not being received on Port 2
