NIC Type	Ethernet,
Network Transfer Rate	10/100Mbps
Data Bus	32-bit PCI
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available (location unidentified)

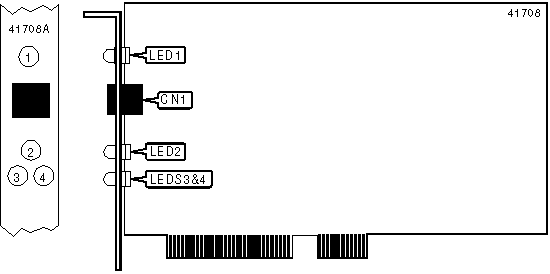

CONNECTIONS
Function	Label
Unshielded twisted pair port	CN1

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	100Mbps connection is selected
LED1	Off	100Mbps connection is not selected
LED2	On	10Mbps connection is selected
LED2	Off	10Mbps connection is not selected
LED3	On	Data is being transmitted/received
LED3	Off	Data is not being transmitted/received
LED4	On	Network connection is good
LED4	Off	Network connection is broken
