EAGLE TECHNOLOGY
NE32HUB-PME
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
10Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Not available |
|

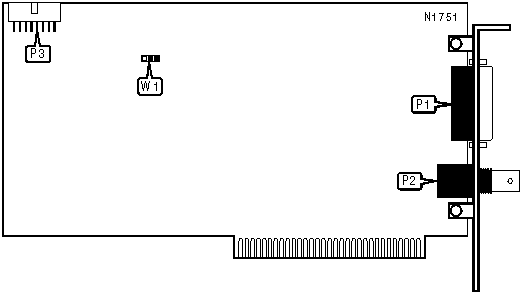

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
AUI transceiver via DB-15 port |
P1 |
NE32HUB-Base or -TPE connector |
P3 |
|
RG-58A/U 50ohm coaxial connector |
P2 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Card uses AUI connector |
W1 |
Pins 1 & 2 closed |
|
Card uses coaxial connector |
W1 |
Pins 2 & 3 closed |
|
MISCELLANEOUS TECHNICAL NOTES |
|
When viewed from the rear of the machine, the NE32HUB-Base card must be installed to the left of all other NE32HUB cards. For the NE32HUB-Base and NE32HUB-TPE cards, see documents N1749 and N1750. |
